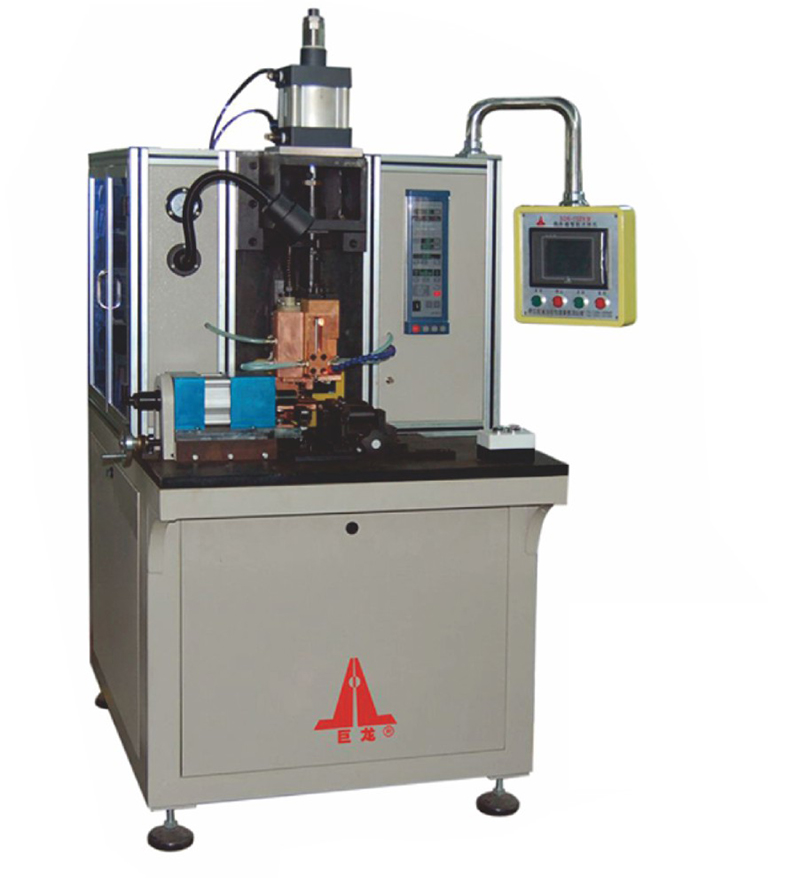

(米亚基电源)SDN-75ZN型 换向器自动点焊机
SDN-75ZN Commutator FullAutomatic Spot Welding Machine
适用于线径较粗和截面较大的线头与换向器点焊的专用设备。采用米亚基智能焊接控制器控制，气缸加压装置、步进电机转位分度、三菱PLC程控、触摸屏显示，水自循环冷却。
Suitable for thicker and larger cross-section wire and commutator spot welding of special equipment. Miyachi smart welding controller control, cylinder pressure device, stepper motor indexing indexing, Mitsubishi PLC program-controlled, touch screen display,water self - cooling circulatory system
技术参数/Technicai Parameters
| 电源电压Supply voltage |
AC380V±10% 50Hz |
|
气源压力Air pressure |
0.5~0.7 MPa |
|
焊机功率Welder power |
75kw |
| 调节级数Adjusted series |
8档 |
| 可焊线径Wire diameter |
≤Φ4.0mm |
| 转子外径Rotor OD |
≤Φ130mm |
| 转子轴径Rotor shaft diameter |
≤Φ22mm |
| 换向器直径Commutator diameter |
≤Φ80mm |
