(2/4极)PR-2B型 双工位排绕线机

上传时间:2019-06-03

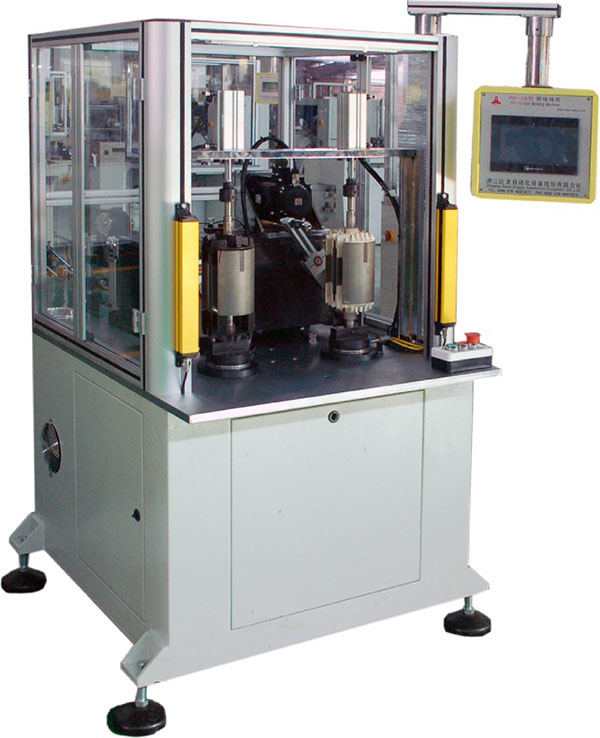

PR-2B Double Workstation Rotor Coil Winding Machine



本机适用于二极及四极家用发电机转子的双工位自动绕排线。本机采用PLC程控,彩色触摸屏显示,伺服驱动器控制,双工位同步绕排线,光栅安全保护,绕线缓升加速,缓降减速,绕完一极自动转向绕另一极,排线平整,运行稳定,操作简单,生产效率高。





This double-stations machine is suitable for winding of two-pole and four-pole household generator rotors. It adopts PLC program control, color touch screen display, servo drive control, double-station synchronous winding and arraying, with grating safety protection. Winding speed stable can be slow acceleration or stable slow deceleration. After one pole winding is completed  the other pole will be automatic winding, and the windings are smooth. The operation is stable and simple, and the production efficiency is high.


技术参数/Technicai Parameters


电源电压Supply voltage AC380V±10% 50Hz

总功率Total power

2.2kw

主轴转速Spindle speed

0~1000r/min
可绕线径Wire range ≤1.0mm
调频范围Frequency range

0~50Hz

工位数Workstations


2
