(带剪刀)ZB-302型转子自动绕线机

上传时间:2019-06-03

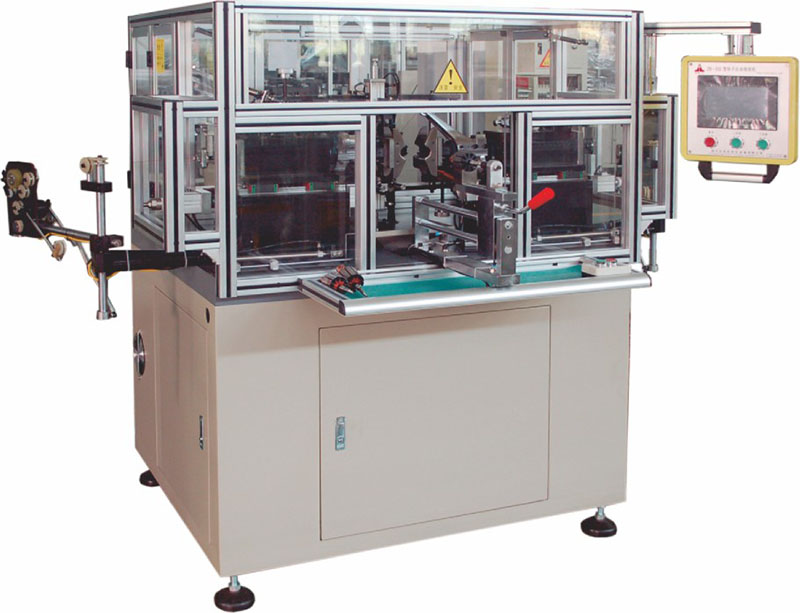

ZB-302  Automatic Rotor Wire Winding Machine



适用于偶数槽电机带钩换向器转子的自动绕线。采用三菱三伺服系统,PLC程控,彩色触摸屏显示,工件推入夹头夹紧、自动定位、分度、绕线、挂钩、自动拉断,并配有剪刀自动剪线,所有流程连续工作,采用脱卸式更换工装,涨力松紧可调,绕线均匀,人工上下料,生产效率高。



It is suitable for automatic winding of the rotor of a commutator with slotted motor.Automatic alignment, indexing, winding, hooking, automatic pull off, and with a scissors automatically cut line, all the processes of continuous work, the use of the three-servo system, PLC program-controlled, color touch screen display, the workpiece into the chuck clamping, Detachable replacement tooling, tension adjustable tension, winding evenly, manual loading and unloading, high production efficiency.



技术参数/Technicai Parameters


电源电压Supply voltage Ac380±10% 50Hz

气源压力Air pressure

0.5~0.7MPa

总功率Total power

3kw
叠片厚度Lamination thickness 25~75mm
换向器外径Commutator OD

Φ20~Φ50mm

转子直径Rotor Diameter

Φ20~Φ90mm
轴径Shaft diameter

Φ3~Φ12

线径Wire

Φ0.15~Φ1.05
