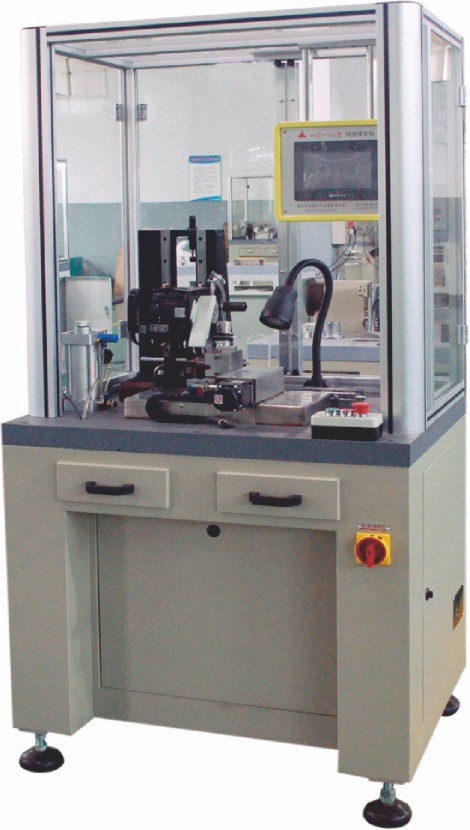

NHJS1-100型 三伺服单刀换向器精车机

上传时间:2019-06-04




NHJS1-100 Three Servo Commutator Turning Machine



本机适用于汽车电机、摩托车起动电机、电动工具串激电机、永磁电机、直流伺服电机的高精度自动车削。采用三个三菱伺服电机,进口PLC程控,彩色触摸屏控制,走刀和进刀位置可精确设定,车削次数可多次进行,进刀量和走刀量在触摸屏上显示,伺服走刀速度均匀,精度高,硬质合金V形块支撑转子轴,轴承档有自动喷油装置,配置高硬度宝石刀头,皮带摩擦转子外圆自动车削,电器机械互锁设计,安全可靠,所有动作一次完成,人工上下工件,操作简单方便。





This machine is suitable for high-precision automatic turning of automobile motor, motor starter motor, power tool series motor,  permanent magnet motor and DC servo motor. Using three Mitsubishi servo motor, imported PLC program control, color touch screen control, feed and infeed position can be set accurately, the number of turning can be carried out several times, the amount of feed and the amount of knife in the touch screen display, servo speed uniformity , High precision, carbide V-shaped blocks support the rotor shaft, the bearing stalls are automatic fuel injection device, configuration high hardness gemstone head, belt friction rotorcylindrical automatic turning, electrical mechanical interlock design, safe and reliable, all actions once completed , Manual up and down the workpiece, easy to operate.




技术参数/Technicai Parameters


电源电压Supply voltage AC380±10% 50Hz

气源压力Air pressure

0.5~0.7MPa

总功率Total power

3kw

转子外径Rotor OD Φ20~Φ80mm

车削粗糙度Turning roughness

Ra0.4

换向器长度Commutator length

≤30mm

换向器直径Commutator diameter

5~40mm

工件线速度Workpiece line speed

0~600m/min

转子轴径Rotor shaft diameter

3~20mm
